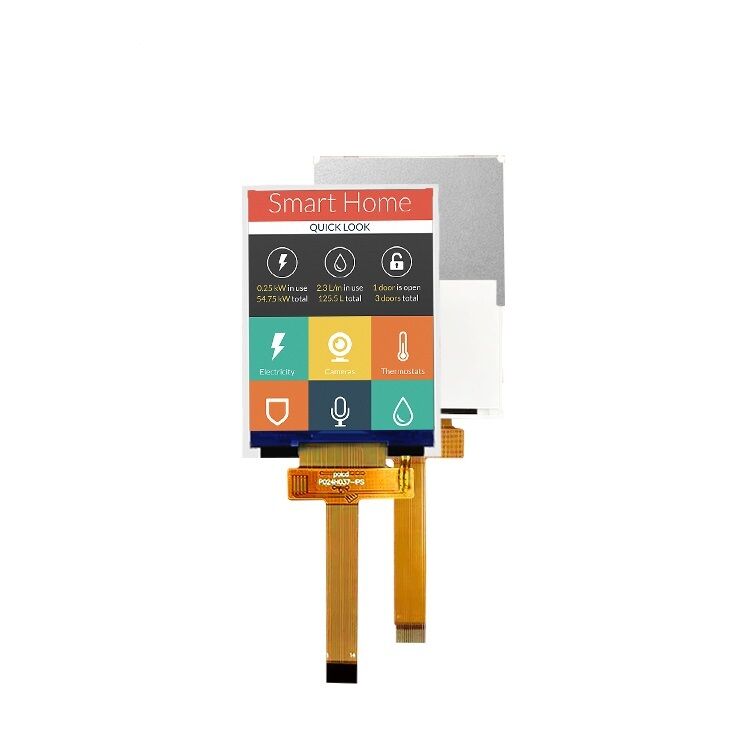

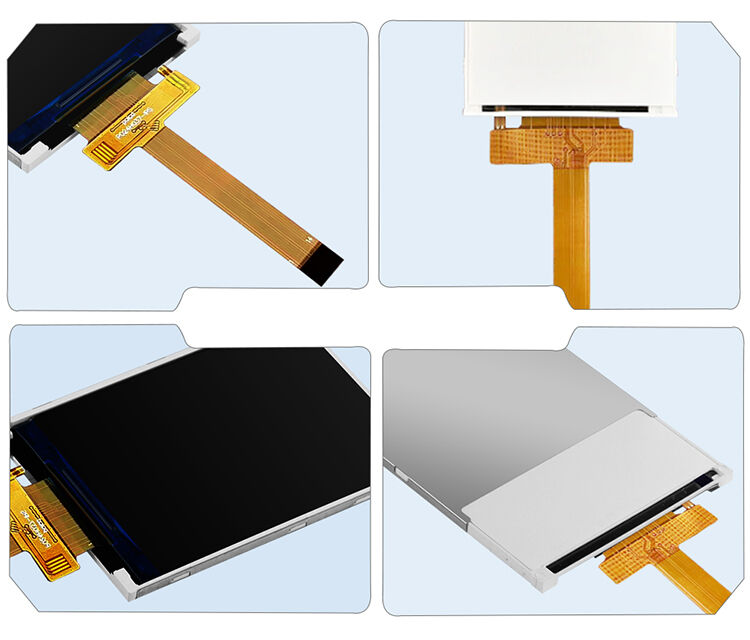

Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display

Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display

Место происхождения:

Шэньчжэнь, Китай

Фирменное наименование:

Polcd

Сертификация:

RoHS, ISO9001

Номер модели:

P024H037-IPS:

Свяжитесь мы

Спросите цитату
Детали продукта
Разрешение:
2,4 дюйма 240x320
Интерфейс:
4 Wire Spi
Драйвер IC:
ST7789V
Яркость (CD/M²):
nit 300
Угол обзора:
IPS все углы обзора
Область отображения:
36,72 (h) x48,96 (v) мм
Приколоть:
14 штифтов
Условия оплаты & доставки
Количество мин заказа
1 шт.
Цена
Please contact us for latest price
Упаковывая детали
Размер FCL: упаковка 40*30*20cm/образец: 20*18*13cm
Время доставки
1-7 рабочих дней
Условия оплаты
T/T, L/C, кредитная карта, PayPal, D/A, D/P, Western Union, Moneygram
Поставка способности
40 000 шт в день
Характер продукции

Parameter:

Model P024H037-IPS
Screen Size 2.4 inch
Number of Pixel 240RGB(H)x320(V)
Display area 36.72(H)x48.96(V)mm
Pixel pitch 0.153(H)x0.153(V)mm
Pins 14 Pins
Outline Dimension 42.72x60.26x2.25mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally Black
Viewing Direction(eye) ALL
Display Color 262K
Luminance(cd/m2) 300 nit
Contrast Ratio 800:1
Interface 4W SPI
Back-light LED Side-light type
Drive IC ST7789V
Operation Temperature -20~70℃
Storage Temperature -30~80℃


2.4 inch TFT display is a thin-film transistor liquid crystal display that measures 2.4 inches diagonally. It is a popular display size for various applications, including handheld devices, digital cameras, portable gaming consoles, and other embedded systems. The display has a high resolution and contrast ratio, a wide viewing angle, and a built-in resistive touchscreen. It also supports various communication protocols, such as SPI, I2C, and UART, making it compatible with a wide range of devices. Its low power consumption and built-in power management system make it ideal for battery-powered devices. Additionally, its compact and lightweight design makes it easy to integrate into various devices.


Polcd 2.4" TFT SPI 240*320 RGB Color 14 Pin ST7789V Small IPS Full Viewing Angle 2.4 inch TFT LCD Display 0
